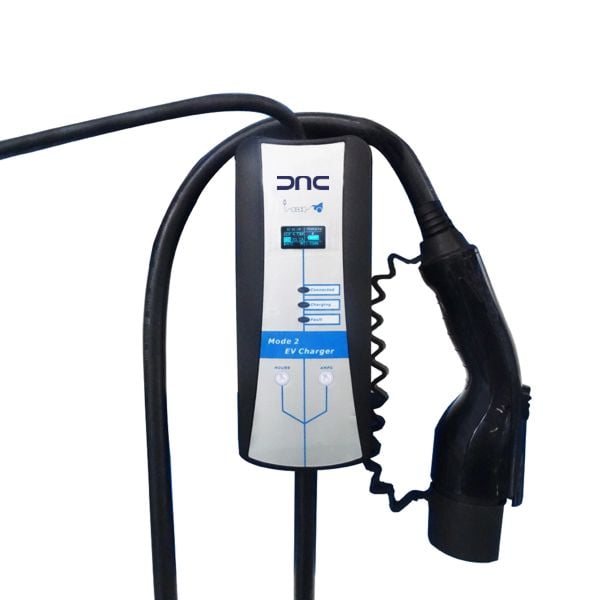

Home Use Charger
Home Use Charger for EV specially for personal two wheeler and four wheeler.
|
Power Specification: 1Phase 3.5kW~7kW, 8A~32A
|
||||
|
AC Power Input Rating
|
SAE Standard
|
IEC Standard
|
||
|
AC Level 2
|
1-Phase
|
|||
|
240V
|
220V ± 15%
|
|||
|
AC Power Output Rating
|
3.5kW
|
3.5kW
|
8/10/13/16A
|
|
|
7kW
|
7kW
|
8/10/13/16/32A
|
||
|
Rated Frequency
|
50/60Hz
|
50/60Hz
|
||
|
Connector Type
|
SAE J1772 (Type 1)
|
IEC 62196-2 (Type 2)
|
||
|
User Interface & Control
|
||||
|
Charging Control
|
Plug and Play
|
|||
|
Display Screen
|
1.3-inch LCD Screen
|
|||
|
Indicators
|
3 LED indicators-Power/Charging/Fault
|
|||
|
Environmental
|
||||
|
Storage Temperature
|
-40 to 75℃ （-40 to 167℉) ambient
|
|||
|
Operating Temperature
|
-30 to 55℃ （-22 to 131℉) ambient
|
|||
|
Operating Humidity
|
Up to 95% non-condensing
|
|||
|
Altitude
|
≤2000m
|
|||
|
Protection
|
||||
|
Protection Ratings
|
IP 66
|
RCD
|
Type A / Type B
|
|
|
Over Voltage Protection
|
Yes
|
Under Voltage Protection
|
Yes
|
|
|
Over Load Protection
|
Yes
|
Short Circuit Protection
|
Yes
|
|
|
Earth Leakage Protection
|
Yes
|
Ground Protection
|
Yes
|
|
|
Over-temp Protection
|
Yes
|
Surge Protection
|
Yes
|
|
|
Wallbox Mechanical
|
||||
|
Dimension (H x W x D, mm)
|
405 x 300 x 115 (dimension without charging cable)
|
|||
|
Weight
|
＜5kg
|
|||
|
Charging Cable Length
|
5m or Customize Length
|
|||
|
Enclosure Material
|
PC
|
|||
Safety performance classification
- Primary Tests: Resistance test. / Heavy Load test. / Thermal Shocks. / Over Discharge. / Short Circuit. / Low Pressure. / Anti-Overcharge. / High temperature storage. / Constant damp heat test. / Anti-heating; smoke, ignite, explosion. / Anti-puncture; damage and liquid leakage and / Anti-extrusion test. / Anti-Vibration test and / Anti-Collision test.
- Temperature Cycling Test: Smoke Test, Ignite Test and Explode Text
- Flame Retardant Property Test: Plastic casing test, Outer casing test and Protective cover test.
- Insulation Resistance Test: In Addition, we do test for insulation resistance upto 2MW, if the battery case is made of metal.
- Appearance Test: After completion of above all tests, we do appearance test for; Obvious deformation, Rust, Leakage and Cracks.
- Capacity Test: After that, we do capacity test of all products, for Minimum 98% of it’s rated value.
Features: Lighter weight. / Compact size. / Long Life. / Higher output. / No explosion and fire under collision. / High temperature performance. / Fast charge capability. / Over charge protection. / Over discharge protection. / Non toxic. / None contaminating. / No rare earth metal. / Lowest self discharge. / Good discharge at low temp. / Excellent large current discharge with Efficiency ≥ 98%.
