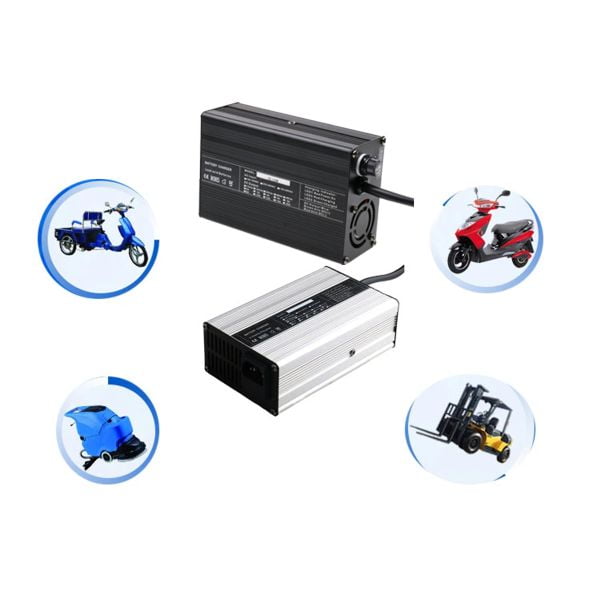

Universal Standard Charger
Roll over image to zoom in
Description of Universal Standard Charger 12v~96v for EV
| DC Voltage | Charging constant pressure | Charging
Constant Current |
Convert / Shutdown | |
| Li-Ion
Charger |
LiFePo4
Charger |
A | A | |
| 12v | 16.8v | 14.6v | 80 | 5 |
| 24v | 29.4v | 29.2v | 40 | 3 |
| 36v | 42v | 43.8v | 35 | 2 |
| 48v | 54.6v | 58.4v | 28 | 1.5 |
| 60v | 71.4v | 73v | 22 | 1.3 |
| 72v | 84v | 87.6v | 20 | 1 |
| 84v | 113.4v | 102.2v | 16 | 0.9 |
| 96v | 126v | 116.8v | 15 | 0.9 |
| 108v | 147v | 131.4v | 12 | 0.9 |
- Fully automatic, surge, flat charge, turbulent charge, full automatic shutdown.
- High-precision current and voltage lock to ensure full, no overcharge.
- Overcurrent, overvoltage, short circuit protection, safe and reliable.
- Conversion efficiency >90%, efficient and environmentally friendly.
Safety performance classification
- Primary Tests: Resistance test. / Heavy Load test. / Thermal Shocks. / Over Discharge. / Short Circuit. / Low Pressure. / Anti-Overcharge. / High temperature storage. / Constant damp heat test. / Anti-heating; smoke, ignite, explosion. / Anti-puncture; damage and liquid leakage and / Anti-extrusion test. / Anti-Vibration test and / Anti-Collision test.
- Temperature Cycling Test: Smoke Test, Ignite Test and Explode Text
- Flame Retardant Property Test: Plastic casing test, Outer casing test and Protective cover test.
- Insulation Resistance Test: In Addition, we do test for insulation resistance upto 2MW, if the battery case is made of metal.
- Appearance Test: After completion of above all tests, we do appearance test for; Obvious deformation, Rust, Leakage and Cracks.
- Capacity Test: After that, we do capacity test of all products, for Minimum 98% of it’s rated value.
Features: Lighter weight. / Compact size. / Long Life. / Higher output. / No explosion and fire under collision. / High temperature performance. / Fast charge capability. / Over charge protection. / Over discharge protection. / Non toxic. / None contaminating. / No rare earth metal. / Lowest self discharge. / Good discharge at low temp. / Excellent large current discharge with Efficiency ≥ 98%.
