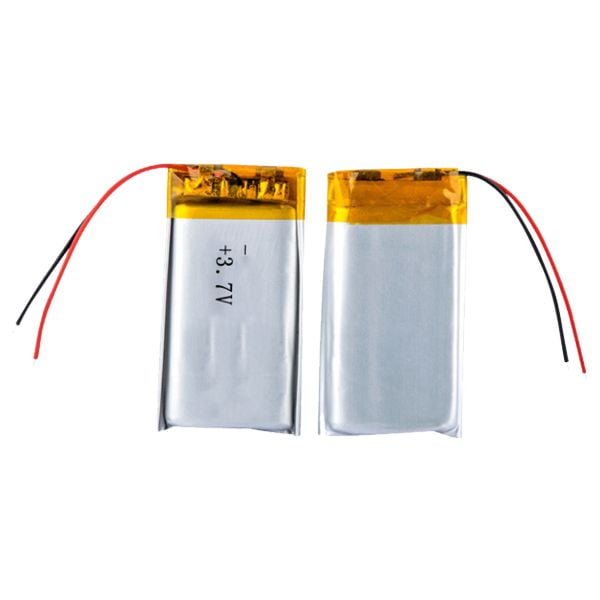

Prismatic LiPo Battery Cell
Roll over image to zoom in
Specification of Prismatic LiPo Battery Cell
|
Product Name
|
Prismatic / Pouch Lithium Polymer Battery
|
|
Nominal Capacity
|
Customized
|
|
Average working Voltage
|
3.65V
|
|
Maximum Charge Voltage
|
4.2V
|
|
Impedance (1KHz)
|
≤1.0mΩ
|
|
Standard Charge Method
|
Constant Current and Constant Voltage (CC/CV)
Current 0.33C / Voltage <4.2V
|
|
Absolute charging temperature
|
0-45 ℃ / Standard 25±2 ℃
|
|
Standard discharge current
|
Constant Current (CC) 1C [Can be customized];
End Voltage (2.75V, T>0°C) (2.5V, ≤0°C)
|
|
Maximum Discharge Current
|
3.0 C (25±2 ℃) [Can be customized]
|
|
Cycle Life
|
1000 / 1500 / 2000
|
Safety performance classification:
- Primary Tests: Resistance test. / Heavy Load test. / Thermal Shocks. / Over Discharge. / Short Circuit. / Low Pressure. / Anti-Overcharge. / High temperature storage. / Constant damp heat test. / Anti-heating; smoke, ignite, explosion. / Anti-puncture; damage and liquid leakage and / Anti-extrusion test. / Anti-Vibration test and / Anti-Collision test.
- Temperature Cycling Test: Smoke Test, Ignite Test and Explode Text
- Flame Retardant Property Test: Plastic casing test, Outer casing test and Protective cover test.
- Insulation Resistance Test: In Addition, we do test for insulation resistance upto 2MW, if the battery case is made of metal.
- Appearance Test: After completion of above all tests, we do appearance test for; Obvious deformation, Rust, Leakage and Cracks.
- Capacity Test: After that, we do capacity test of all products, for Minimum 98% of it’s rated value.
Features: Lighter weight. / Compact size. / Long Life. / Higher output. / No explosion and fire under collision. / High temperature performance. / Fast charge capability. / Over charge protection. / Over discharge protection. / Non toxic. / None contaminating. / No rare earth metal. / Lowest self discharge. / Good discharge at low temp. / Excellent large current discharge with Efficiency ≥ 98%.
