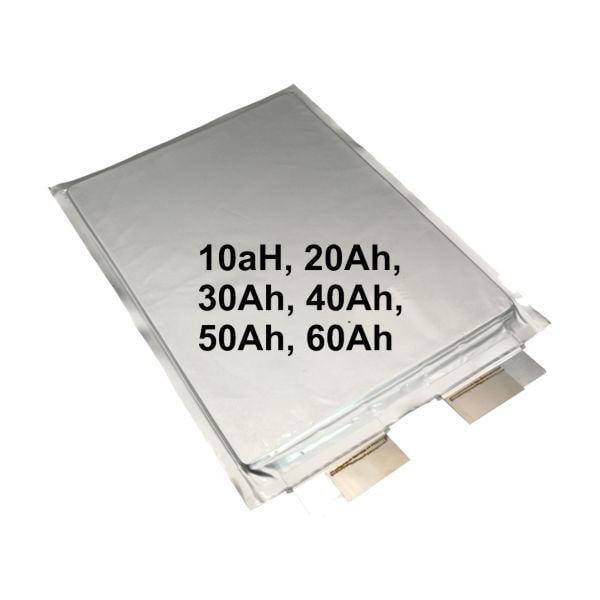

Prismatic LTO Battery Cell 2.3v/2.4v
Roll over image to zoom in
Specification of Prismatic LTO Battery Cell 2.3v/2.4v
| Battery voltage: | 2.3v / 2.4v |
| Battery internal resistance: | ≤ 1 mΩ (milliohm) |
| Rated Capacity: | Customized |
| Actual Capacity: | ≥ Rated Capacity |
| Battery features: | Supporting Fast Charging, Stable, Extreme Cold Resistance, Extra Long Service Life |
| Max Discharge Rate | 10C [Can be Customized] |
| Charge Rate | 3C [Can be Customized] |
| Charge Method: | CC/CV(Constant current/constant voltage) |
| Operating Temperature Range(℃) | -40℃ to +60℃ |
| Cut-Off Voltage | Charging cut-off voltage 2.8V Discharge cut-off voltage 1.5V |
| Life Cycle: | ≥ 20,000 times |
Safety performance classification:
- Primary Tests: Resistance test. / Heavy Load test. / Thermal Shocks. / Over Discharge. / Short Circuit. / Low Pressure. / Anti-Overcharge. / High temperature storage. / Constant damp heat test. / Anti-heating; smoke, ignite, explosion. / Anti-puncture; damage and liquid leakage and / Anti-extrusion test. / Anti-Vibration test and / Anti-Collision test.
- Temperature Cycling Test: Smoke Test, Ignite Test and Explode Text
- Flame Retardant Property Test: Plastic casing test, Outer casing test and Protective cover test.
- Insulation Resistance Test: In Addition, we do test for insulation resistance upto 2MW, if the battery case is made of metal.
- Appearance Test: After completion of above all tests, we do appearance test for; Obvious deformation, Rust, Leakage and Cracks.
- Capacity Test: After that, we do capacity test of all products, for Minimum 98% of it’s rated value.
Features: Lighter weight. / Compact size. / Long Life. / Higher output. / No explosion and fire under collision. / High temperature performance. / Fast charge capability. / Over charge protection. / Over discharge protection. / Non toxic. / None contaminating. / No rare earth metal. / Lowest self discharge. / Good discharge at low temp. / Excellent large current discharge with Efficiency ≥ 98%.
